| Model | TEV-3825 | TEV-5025 | TEC-6025 | TEV-8025 |
| Material | Carbon Fibre-Toray T700 | Carbon Fibre-Toray T700 | Carbon Fibre-Toray T700 | Carbon Fibre-Toray T700 |
| Size | 700C | 700C | 700C | 700C |
| Appearance | 3K/UD | 3K/UD | 3K/UD | 3K/UD |
| Finish | Matte/Glossy | Matte/Glossy | Matte/Glossy | Matte/Glossy |
| Rim depth | 38mm | 50mm | 60mm | 60mm |
| Rim width | 25mm | 25mm | 25mm | 25mm |
| Brake Line Width | 14mm | 14mm | 14mm | 14mm |
| Rim type | Clincher/Tubeless/Tubular | Clincher/Tubeless/Tubular | Clincher/Tubeless/Tubular | Clincher |
| Wheel Out Diameter | 633mm | 633mm | 633mm | 633mm |
| ERD | 564mm | 540mm | 520mm | 464mm |
| Assembly Hole Dia | 7.5mm | 7.5mm | 7.5mm | 7.5mm |
| Spoke Hole Dia | 4.5mm | 4.5mm | 4.5mm | 4.5mm |
| Valve Hole Dia | 6.5mm | 6.5mm | 6.5mm | 6.5mm |
| Flatness | <0.2mm | <0.2mm | <0.2mm | <0.2mm |
| Roundness | <0.5mm | <0.5mm | <0.5mm | <0.5mm |
| Maximum Tire Pressure | 120psi | 120psi | 120psi | 120psi |
| Spoke Tension Front | 100-130kg | 100-130kg | 100-130kg | 100-130kg |
| Spoke Tension Rear | 100-130kg (Non-Drive Side) 150-180kg(Drive Side) | 100-130kg (Non-Drive Side) 150-180kg(Drive Side) | 100-130kg (Non-Drive Side) 150-180kg(Drive Side) | 100-130kg (Non-Drive Side) 150-180kg(Drive Side) |
| Yaw | 0.2mm | 0.2mm | 0.2mm | 0.2mm |
| Weight | 1620+/-30g | 1680+/-30g | 1720+/-30g | 1800+/-30g |
| Maximum Weight | 200kg*2 (front and rear) | 200kg*2 (front and rear) | 200kg*2 (front and rear) | 200kg*2 (front and rear) |

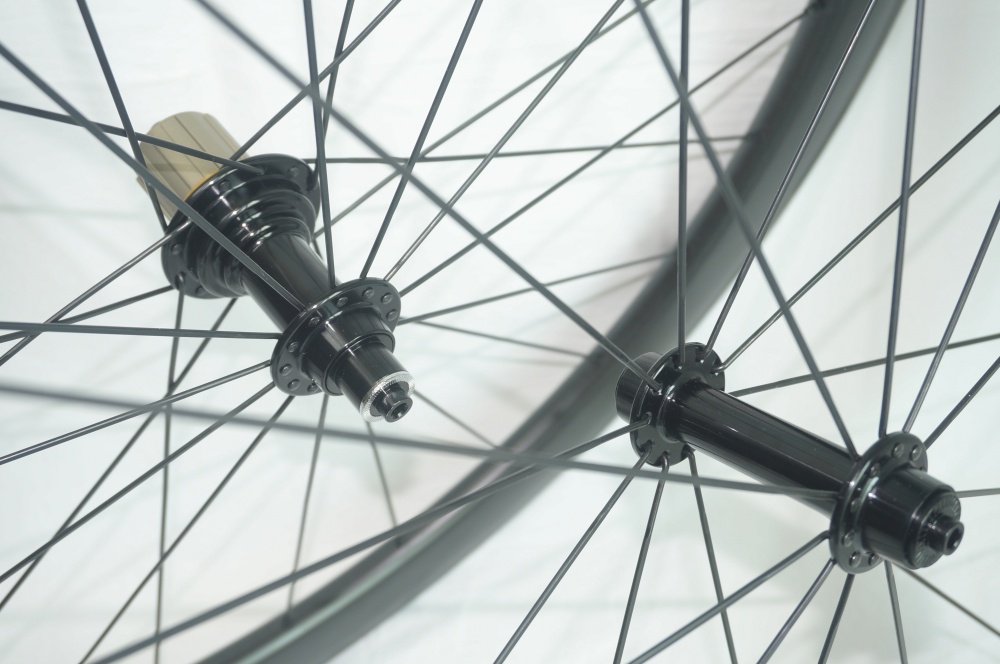

| Hub | Novatec 291/482 ,Powerway R13 or R36 Hub | Novatec 291/482 ,Powerway R13 or R36 Hub | Novatec 291/482 ,Powerway R13 or R36 Hub | Novatec 291/482 ,Powerway R13 or R36 Hub |
| Spoke holes | 20-24H | 20-24H | 20-24H | 20-24H |
| spoke color | CN 494 (Black/White) | CN 494 (Black/White) | CN 494 (Black/White) | CN 494 (Black/White) |
| Nipple color | Alloy CN nipples (Black) | Alloy CN nipples (Black) | Alloy CN nipples (Black) | Alloy CN nipples (Black) |
| Quick release(skewers): | Inclued(Balck) | Inclued(Balck) | Inclued(Balck) | Inclued(Balck) |
| Fit frame | For road bike | For road bike | For road bike | For road bike |
| Casette body | (fit for shimano 8/9/10/11/12 speed or Campagnolo 11 speed) | (fit for shimano 8/9/10/11/12 speed or Campagnolo 11 speed) | (fit for shimano 8/9/10/11/12 speed or Campagnolo 11 speed) | (fit for shimano 8/9/10/11/12 speed or Campagnolo 11 speed) |
| Warranty | 2 year | 2 year | 2 year | 2 year |
| Quality control | All pass EN standard test | All pass EN standard test | All pass EN standard test | All pass EN standard test |
