| Model | WH-29ER | WH-27.5ER |
| Material | Carbon Fibre-Toray T700 | Carbon Fibre-Toray T700 |
| Size | MTB 29er | MTB 27.5er |
| Appearance | UD | UD |
| Finish | Matte/Glossy | Matte/Glossy |
| Rim depth | 25mm/28mm/30mm | 25mm/30mm/34mm |
| Rim width | 27mm/30mm/35mm/40mm | 27mm/30mm/35mm/40mm/45mm/50mm |
| Brake Line Width | No | No |
| Rim type | Hookless | Hookless |
| Wheel Out Diameter | 633mm | 633mm |
| ERD | 591mm/585mm/581mm | 553mm/543mm/534mm |
| Assembly Hole Dia | 7.5mm | 7.5mm |
| Spoke Hole Dia | 4.5mm | 4.5mm |
| Valve Hole Dia | 6.5mm | 6.5mm |
| Flatness | <0.2mm | <0.2mm |
| Roundness | <0.5mm | <0.5mm |
| Maximum Tire Pressure | 120psi | 120psi |
| Spoke Tension Front | 100-130kg | 100-130kg |
| Spoke Tension Rear | 100-130kg (Non-Drive Side) 150-180kg(Drive Side) | 100-130kg (Non-Drive Side) 150-180kg(Drive Side) |
| Yaw | 0.2mm | 0.2mm |
| Weight | 1760+/-20g/pcs | 1700+/-20g/pcs |
| Maximum Weight | 200kg*2 (front and rear) | 200kg*2 (front and rear) |

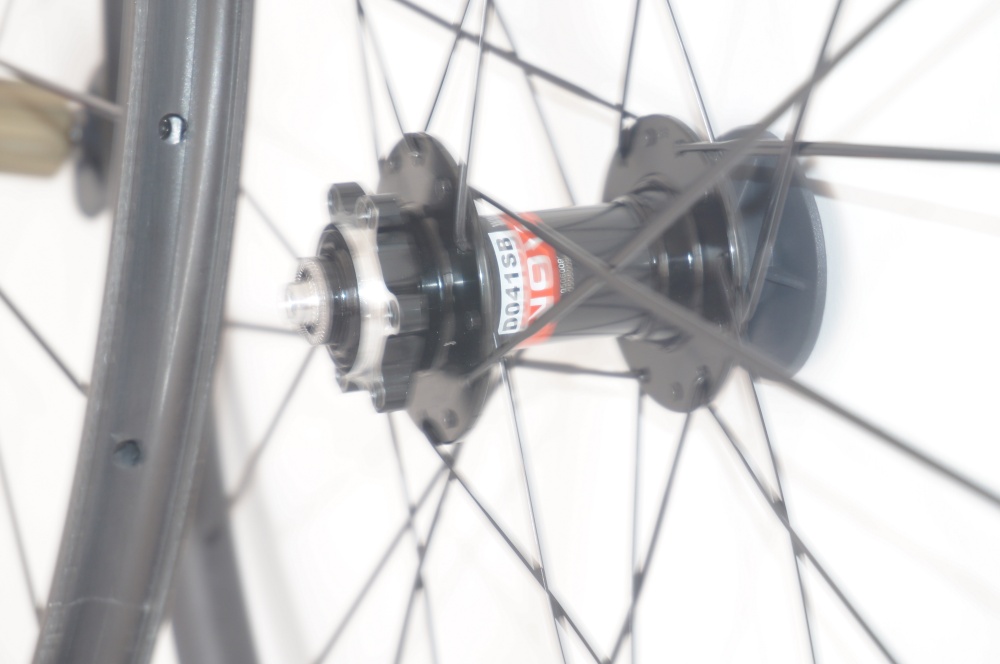

| Hub | Novatec 791/792 142 or 148 rear ;100 or 110 front | Novatec 791/792 142 or 148 rear ;100 or 110 front |
| Spoke holes | 32/32H | 32/32H |
| spoke color | CN 494 (Black/White) | CN 494 (Black/White) |
| Nipple color | Alloy CN nipples (Black) | Alloy CN nipples (Black) |
| Quick release(skewers): | Inclued(Balck) | Inclued(Balck) |
| Fit frame | For MTB 29er bike | For MTB 27.5er bike |
| Casette body | (fit for shimano 8/9/10/11/12 speed or XD) | (fit for shimano 8/9/10/11/12 speed or XD) |
| Warranty | 2 year | 2 year |
| Quality control | All pass EN standard test | All pass EN standard test |
