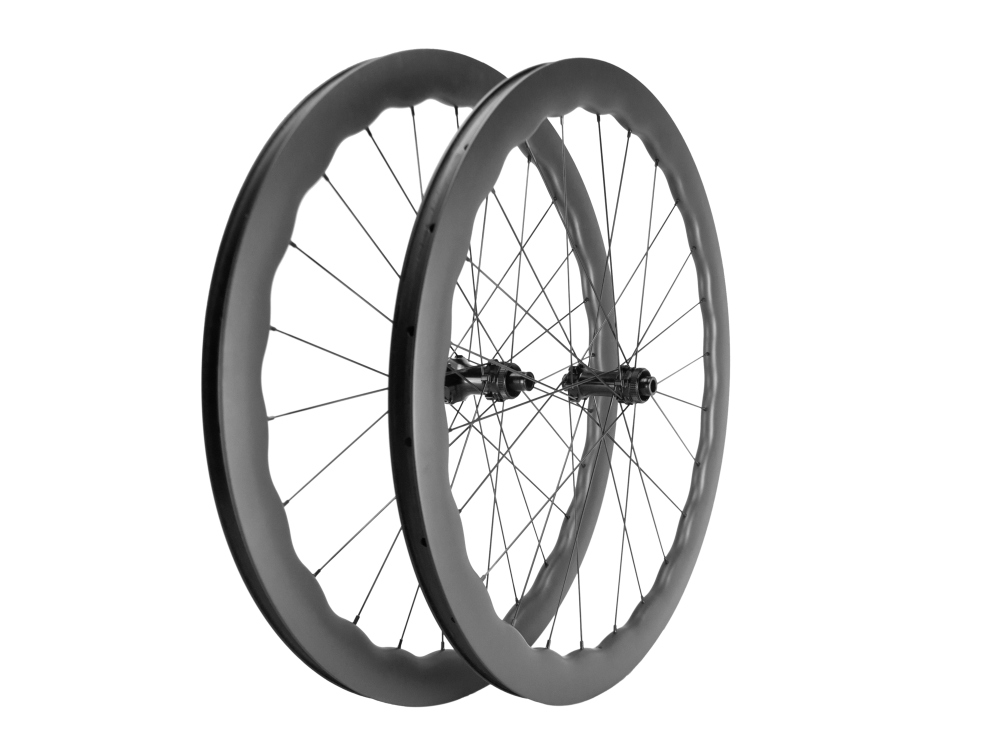

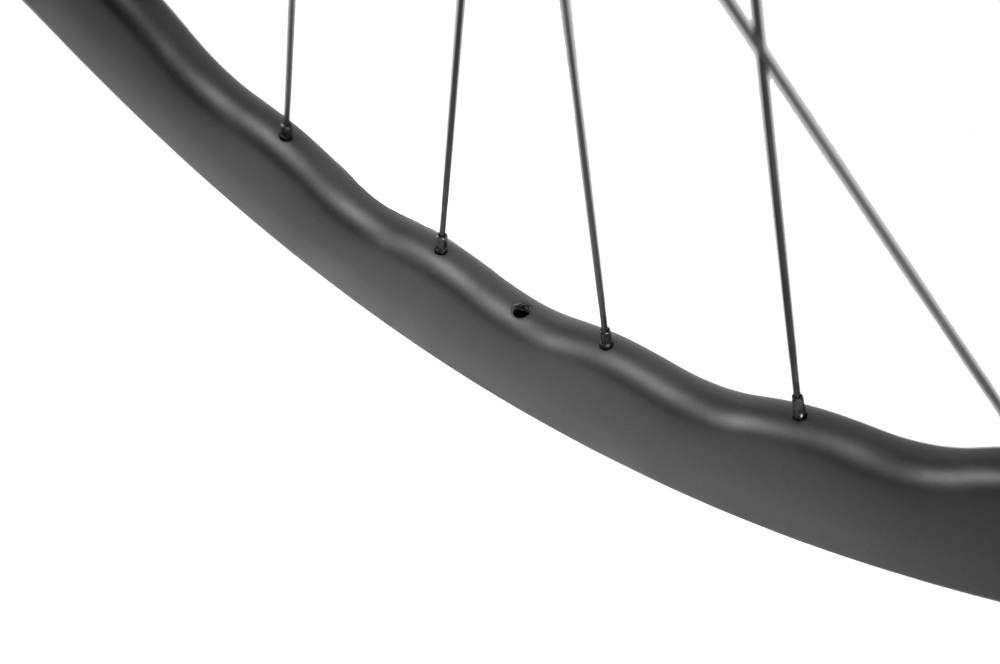

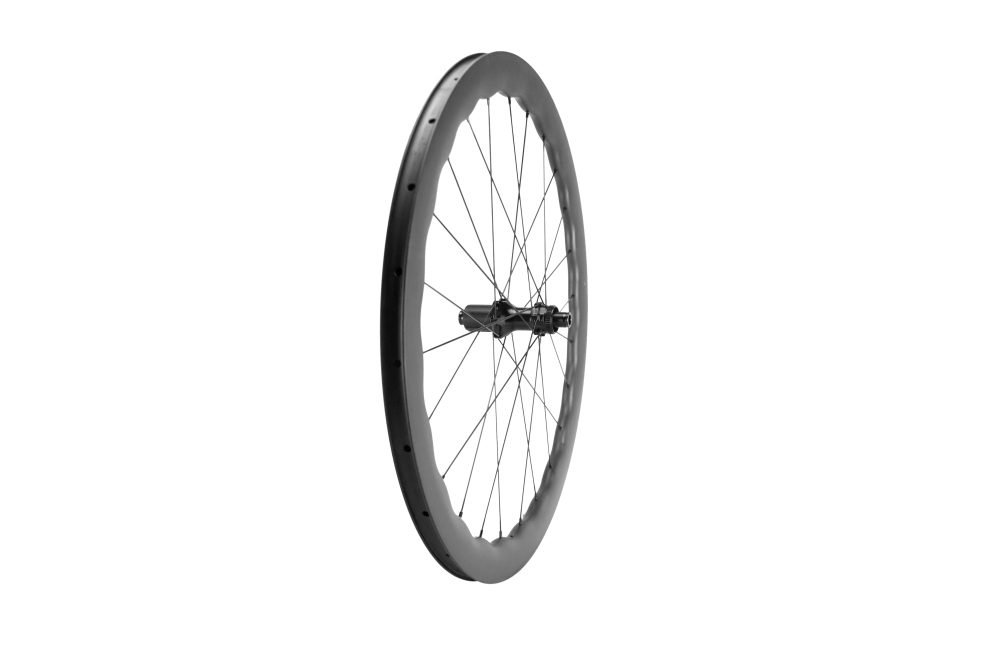

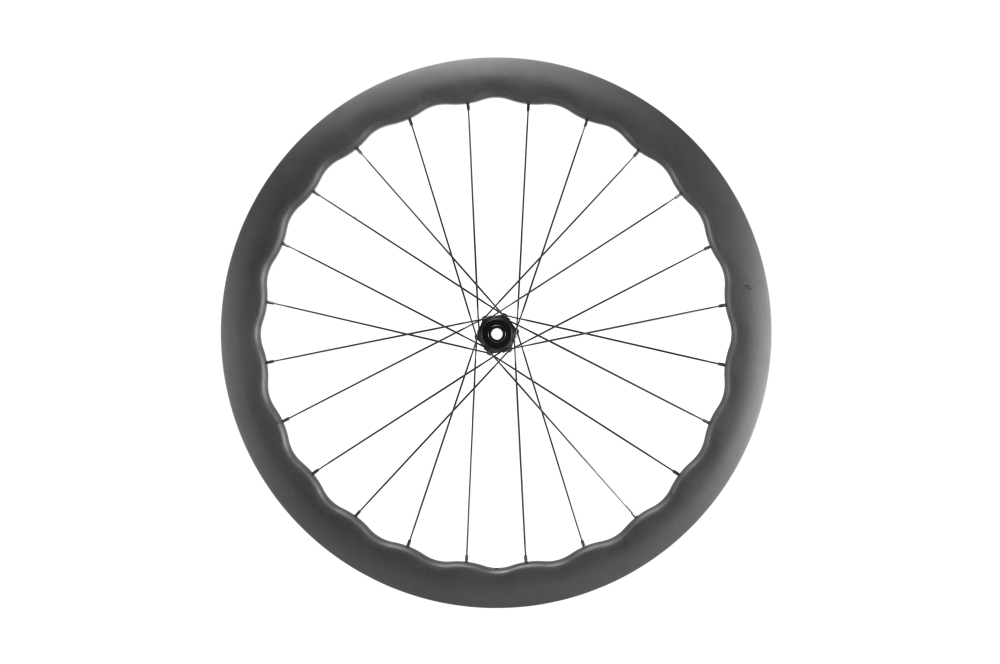

Tubeless 50-25 Wave Wheelset Carbon Road Wheel 700c

SKU:
50mm deep wheel set, 25mm width , clincher/Tubeless
0.0 (0 Reviews)
1 Sold
$0.00 $479.00
Received successfully
Coupon Code
CONTINUE SHOPPING
    Please select the information you want X
  • Rim Type:
    25mm Clincher
    25mm Tubeless
  • Hub Type:
    Novatec 041/042
    Customized CX9
  • Rotor Disc:
    Center Lock
    6 Bolts
  • Cassette:
    Shimano 11/12
    Sram XDR 12
  • Finish:
    Matte
    Glossy
Quantity
-
+
  • Tubeless 50-25 Wave Wheelset Carbon Road Wheel 700c
  • Tubeless 50-25 Wave Wheelset Carbon Road Wheel 700c
  • Tubeless 50-25 Wave Wheelset Carbon Road Wheel 700c
  • Tubeless 50-25 Wave Wheelset Carbon Road Wheel 700c
  • Description
Model TEW-45 TEW-50 TEW-65 TEW-80
Material Carbon Fibre-Toray T700 Carbon Fibre-Toray T700 Carbon Fibre-Toray T700 Carbon Fibre-Toray T700
Size 700C 700C 700C 700C
Appearance UD UD UD UD
Finish Matte/Glossy Matte/Glossy Matte/Glossy Matte/Glossy
Rim depth 45mm 50mm 65mm 80mm
Rim width 25mm(U shape) 25mm(U shape) 25mm(U shape) 25mm(U shape)
Brake Line Width Disc no Braking Surface Disc no Braking Surface Disc no Braking Surface Disc no Braking Surface
Rim type Tubeless Tubeless Tubeless Tubeless
Wheel Out Diameter 633mm 633mm 633mm 633mm
ERD 550mm 540mm 510mm 480mm
Assembly Hole Dia 7.5mm 7.5mm 7.5mm 7.5mm
Spoke Hole Dia 4.5mm 4.5mm 4.5mm 4.5mm
Valve Hole Dia 6.5mm 6.5mm 6.5mm 6.5mm
Flatness <0.2mm <0.2mm <0.2mm <0.2mm
Roundness <0.5mm <0.5mm <0.5mm <0.5mm
Maximum Tire Pressure 120psi 120psi 120psi 120psi
Spoke Tension Front 100-130kg 100-130kg 100-130kg 100-130kg
Spoke Tension Rear 100-130kg (Non-Drive Side)  150-180kg(Drive Side) 100-130kg (Non-Drive Side)  150-180kg(Drive Side) 100-130kg (Non-Drive Side)  150-180kg(Drive Side) 100-130kg (Non-Drive Side)  150-180kg(Drive Side)
Yaw 0.2mm 0.2mm 0.2mm 0.2mm
Weight 1700+/-20g 1760+/-20g 1850+/-20g 1980+/-20g
Maximum Weight 200kg*2 (front and rear) 200kg*2 (front and rear) 200kg*2 (front and rear) 200kg*2 (front and rear)
Hub Novatec 041/042 Novatec 041/042 Novatec 041/042 Novatec 041/042
Spoke Holes 24-24H or 28/28H 24-24H or 28/28H 24-24H or 28/28H 24-24H or 28/28H
Spoke Color CN Round Spokes (Black) CN 494 (Black) CN 494 (Black) CN 494 (Black)
Nipple Color Alloy CN nipples (Black) Alloy CN nipples (Black) Alloy CN nipples (Black) Alloy CN nipples (Black)
Quick Release(skewers): Inclued(Balck) Inclued(Balck) Inclued(Balck) Inclued(Balck)
Fit Frame For road bike For road bike For road bike For road bike
Cassette Body (fit for shiman0 8/9/10/11/12 speed or XDR 12) (fit for shiman0 8/9/10/11/12 speed or XDR 12) (fit for shiman0 8/9/10/11/12 speed or XDR 12) (fit for shiman0 8/9/10/11/12 speed or XDR 12)
Warranty 2 year 2 year 2 year 2 year
Quality Control All pass EN standard test All pass EN standard test All pass EN standard test All pass EN standard test
