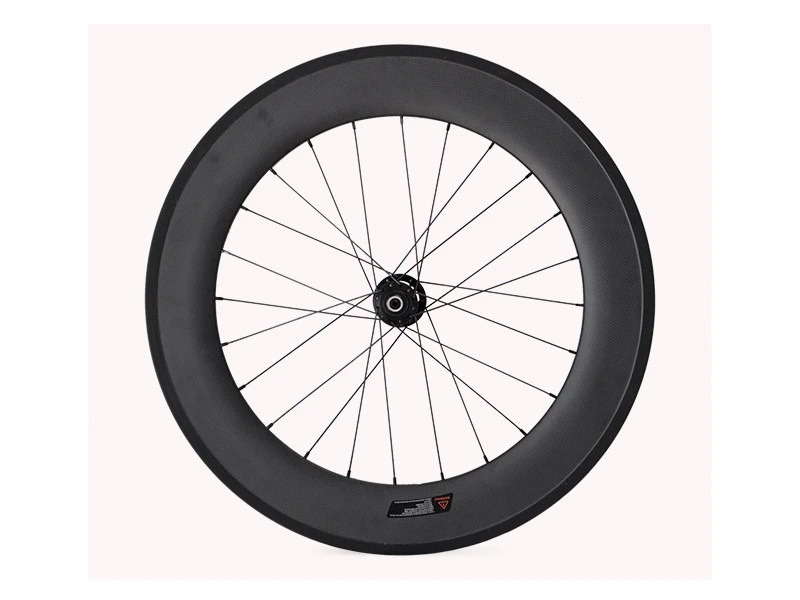

Tubeless 80-25 Carbon Road and Cyclocross Wheelset Disc Brake 25mm Width

SKU:
80mm deep carbon road and CX wheel disc brake
clincher & Tubeless
0.0 (0 Reviews)
117 Sold
$0.00 $419.00
Received successfully
Coupon Code
CONTINUE SHOPPING
    Please select the information you want X
  • Rim Type:
    25mm Clincher
    25mm Tubeless
  • Hub Type:
    Novatec 041/042
    Customized CX9
  • Rotor Disc:
    Center Lock
    6 Botls
  • Cassette:
    Shimano 11/12
    Sram XDR 12
  • Finish:
    Matte
    Glossy
Quantity
-
+
  • VB-88mm deep carbon road and cyclocross wheel set disc brake 23/25mm width
  • VB-88mm deep carbon road and cyclocross wheel set disc brake 23/25mm width
  • VB-88mm deep carbon road and cyclocross wheel set disc brake 23/25mm width
  • VB-88mm deep carbon road and cyclocross wheel set disc brake 23/25mm width
  • Description
Model TE-3527 TE-3831 TE-3825 TE-5025 TE-6025 TE-8025
Material Carbon Fibre-Toray T700 Carbon Fibre-Toray T700 Carbon Fibre-Toray T700 Carbon Fibre-Toray T700 Carbon Fibre-Toray T700 Carbon Fibre-Toray T700
Size 700C 700C 700C 700C 700C 700C
Appearance UD UD UD UD UD UD
Finish Matte/Glossy Tubeless Tubeless Matte/Glossy Matte/Glossy Matte/Glossy
Rim depth 35mm 38mm 38mm 50mm 60mm 80mm
Rim width 27mm 31mm 25mm 25mm 25mm 25mm
Brake Line Width Disc no Braking Surface Disc no Braking Surface Disc no Braking Surface Disc no Braking Surface Disc no Braking Surface Disc no Braking Surface
Rim type Tubeless Tubeless Tubeless Tubeless Tubeless Tubeless
Wheel Out Diameter 633mm 633mm 633mm 633mm 633mm 633mm
ERD 569.5mm 564mm 564mm 540mm 520mm 464mm
Assembly Hole Dia 7.5mm 7.5mm 7.5mm 7.5mm 7.5mm 7.5mm
Spoke Hole Dia 4.5mm 4.5mm 4.5mm 4.5mm 4.5mm 4.5mm
Valve Hole Dia 6.5mm 6.5mm 6.5mm 6.5mm 6.5mm 6.5mm
Flatness <0.2mm <0.2mm <0.2mm <0.2mm <0.2mm <0.2mm
Roundness <0.5mm <0.5mm <0.5mm <0.5mm <0.5mm <0.5mm
Maximum Tire Pressure 120psi 120psi 120psi 120psi 120psi 120psi
Spoke Tension Front 100-130kg 100-130kg 100-130kg 100-130kg 100-130kg 100-130kg
Spoke Tension Rear 100-130kg (Non-Drive Side)  150-180kg(Drive Side) 100-130kg (Non-Drive Side)  150-180kg(Drive Side) 100-130kg (Non-Drive Side)  150-180kg(Drive Side) 100-130kg (Non-Drive Side)  150-180kg(Drive Side) 100-130kg (Non-Drive Side)  150-180kg(Drive Side) 100-130kg (Non-Drive Side)  150-180kg(Drive Side)
Yaw 0.2mm 0.2mm 0.2mm 0.2mm 0.2mm 0.2mm
Weight 1760+/-20g/pcs 1760+/-50g 1740+/-20g/pcs 1760+/-20g/pcs 1840+/-20g/pcs 1980+/-20g/pcs
Maximum Weight 200kg*2 (front and rear) 200kg*2 (front and rear) 200kg*2 (front and rear) 200kg*2 (front and rear) 200kg*2 (front and rear) 200kg*2 (front and rear)
Hub Novatec 411/412 Novatec 411/412 Novatec 411/412 Novatec 411/412 Novatec 411/412 Novatec 411/412
Spoke holes 24-24H or 28/28H 24-24H or 28/28H 24-24H or 28/28H 24-24H or 28/28H 24-24H or 28/28H 24-24H or 28/28H
spoke color CN 494 (Black/White) Aero spokes (Black) CN 494 (Black/White) CN 494 (Black/White) CN 494 (Black/White) CN 494 (Black/White)
Nipple color Alloy CN nipples (Black/Red/Sliver) Alloy  nipples (Black) Alloy CN nipples (Black) Alloy CN nipples (Black) Alloy CN nipples (Black) Alloy CN nipples (Black)
Quick release(skewers): Inclued(Balck/Red) Inclued(Balck) Inclued(Balck) Inclued(Balck) Inclued(Balck) Inclued(Balck)
Fit frame For road bike For road bike For road bike For road bike For road bike For road bike
Casette body (fit for shiman0 8/9/10/11/12 speed or XDR 12) (fit for shiman0 8/9/10/11/12 speed or XDR 12) (fit for shiman0 8/9/10/11/12 speed or XDR 12) (fit for shiman0 8/9/10/11/12 speed or XDR 12) (fit for shiman0 8/9/10/11/12 speed or XDR 12) (fit for shiman0 8/9/10/11/12 speed or XDR 12)
Warranty 2 year 2 year 2 year 2 year 2 year 2 year
Quality control All pass EN standard test All pass EN standard test All pass EN standard test All pass EN standard test All pass EN standard test All pass EN standard test
